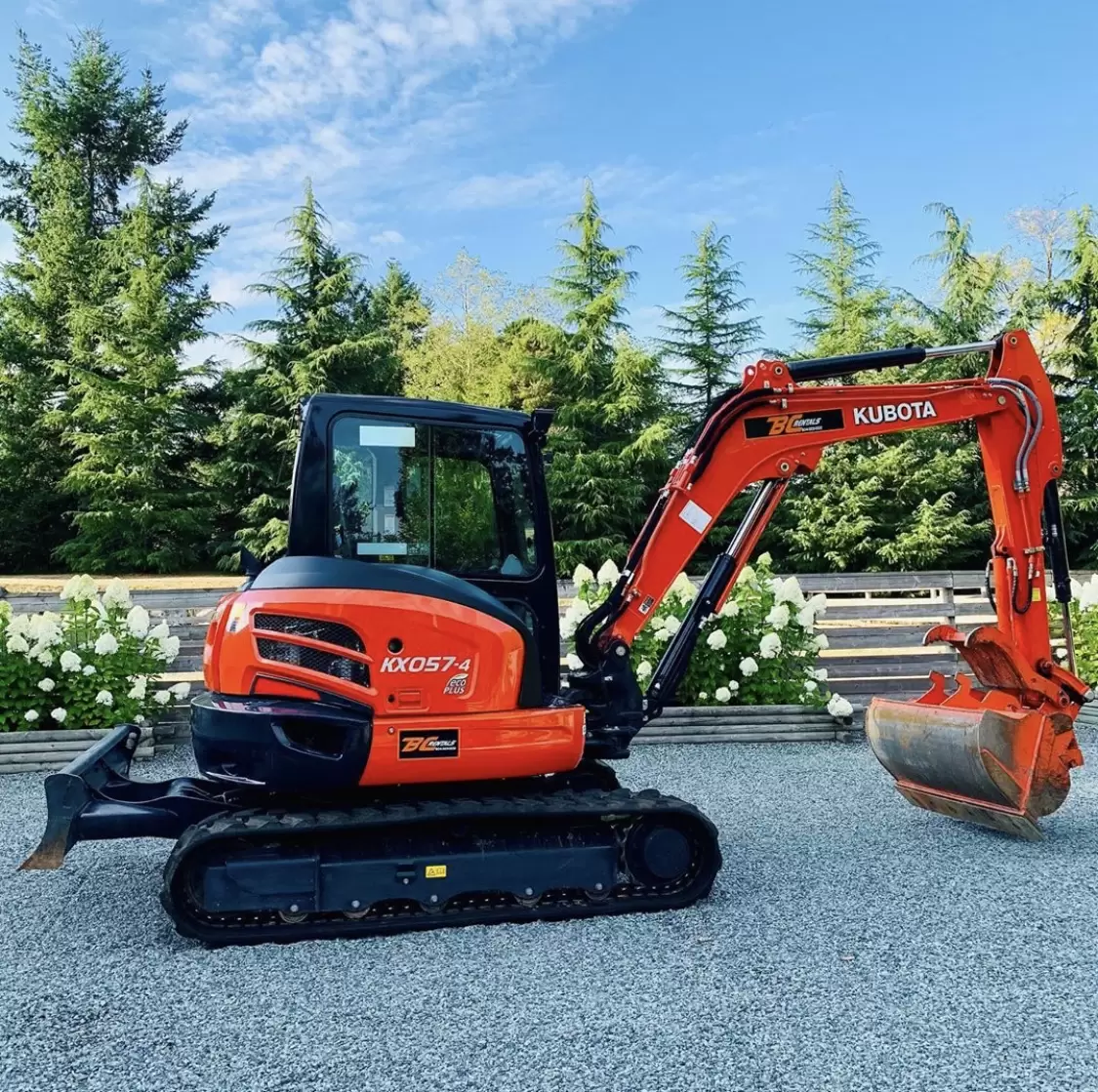

Kubota Mini Kx057-4 Excavator

Spec Value
Class / Operating Weight ~ 5.45-5.56 tonnes (≈ 5,455-5,600 kg depending on canopy/cab)
Engine Kubota V2607-DI, 4-cylinder, diesel; ~ 47.6 hp (≈ 35.5 kW) gross, ~45.4 hp (≈ 33.8-34 kW) net at ~2,200 rpm
Displacement ~ 2,615 cc (≈ 2.62 L)
Dimensions (Transport) • Length ~ 5,520 mm • Width ~ 1,960 mm (can vary, narrow track option)  • Height ~ 2,550 mm
Ground Clearance ~ 310 mm
Digging Depth ~ 3,890 mm (≈ 12.7 ft) with the standard boom/arm
Max Reach (horizontal at ground level) ~ 6,110 mm (≈ 20.05 ft)
Max Dumping Height ~ 4,160 mm (≈ 13.65 ft)
Breakout Force (Bucket) ~ 4,315 kgf (≈ 42.3 kN)
Arm (Stick) Breakout Force ~ 2,500 kgf
Travel Speed Low: ~ 2.8 km/h; High: ~ 4.9 km/h (rubber track version)
Hydraulic System • Dual-variable-pump load-sensing system (2 × variable + 1 × gear pump)  • Auxiliary hydraulic flow ~ 75 L/min (main circuit) / also lower auxiliary ~ 37 L/min available
Blade Width ~ 1,960 mm; lift & drop: lift ~440 mm above ground and drop ~405 mm below ground with dozer blade
Fuel Capacity ~ 75 litres
Hydraulic System Oil / Tank System oil ~ 79 L; reservoir ~ 45 L (approx)
